Conservation Egress Access Rooflight

Our Conservation Egress Access Rooflight is the only authentic and fully compliant, side-hung, outward-opening rooflight engineered to meet the very latest building regulation standards for heritage properties.

Specifically designed for properties seeking to fulfill Approved Document B (fire safety) volume 1: Dwellings, Requirement B1: Means of warning and escape in a pitched roof, this meticulously crafted solution ensures a safe and secure exit from your building, without the need for external assistance.

Seamlessly complementing The Original Conservation Rooflight, this innovative addition to our Pitched Roof Collection beautifully integrates authentic design features with enhanced functionality. It upholds the signature aesthetic of The Conservation Rooflight, right down to the finest details, while providing the essential side-hinged operation required by Part B1. This pitched roof window not only enhances the historic charm of heritage properties but also prioritises the safety and well-being of its occupants, offering a harmonious blend of authenticity and crucial safety.

For comprehensive details on its performance, dimensions, and unique features, please explore the technical documentation below. It is also suitable for use with our installation flashing kit, providing everything needed for a watertight installation.

Authentic Design

Left or Right Sided Hinge Options

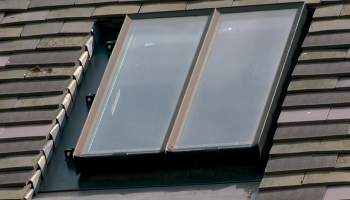

Hinges

Exposed Hinges

Traditional Exposed Hinges of The Conservation Rooflight

Single Glazed Appearance

Conservation Single Glazed Appearance
Angled Wedge
Signature angle silicone edge of The Conservation Rooflight

Glazing Clips

Glazing Clip Reduced Size

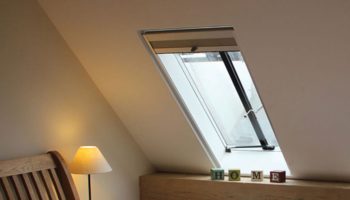

Seamless Internal Finish

Seamless-Internal-Finish
Consistent Design

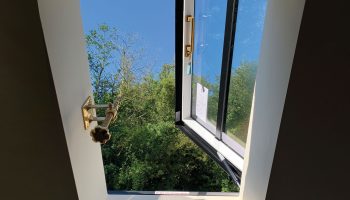

Authentic Ironmongery

Authentic-Ironmongery

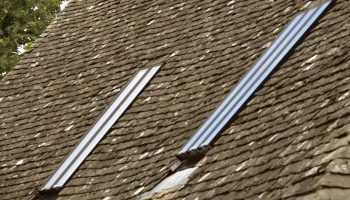

Flush Finish

Flush-Finish

Modern Performance

Performance Characteristics Test Method Classification
Thermal transmittance of window (Uw)
EN ISO 10077-2
1.4 W/m2K
Thermal transmittance of glazing (Ug)
EN 673
1.0W/m2K
Solar energy transmittance
EN 410
0.53 (53%)
Light transmittance
EN 410
0.71 (71%)

Classic Sizes

  • Sizes are displayed as the clear viewable dimensions. Please note, the structural opening dimensions can be found by hovering over the icons. For structural openings in a flush slate roof pitch below 29°, please get in touch with our team.
  • Meets requirements for the roof window to meet 'Requirement B1: Means of warning and escape' wheninstalled in accordance with building regulations.
  • Suitable for roof pitches between 17.5° and 65°.
  • For installation into roof pitches below 17.5°, please get in touch with our team.
  • The casement opens up to 60° meeting the minimum opening requirements of 450mm wide and 450mm high, with an openable area at least 0.33m2.
  • The Conservation Egress Access Rooflight range is conformity marked in accordance with EN14351-1.

Hand Cast Ironmongery

B1 Means of Escape Guidance

The Conservation Egress Access Rooflight has been designed to comply with the general provisions paragraph 2.10 (sub-sections ai, aii & d) of The Building Regulations Part B1. The details of this are shown below:

  • Provide an unobstructed openable area that is at least 0.33m²
  • Meeting minimum dimension requirements of 450mm high × 450mm wide
  • The bottom of the openable area should not be more than 1100mm above the floor. The designer and installer hold responsibility for ensuring the rooflight is installed at the correct height.

For technical support, please get in touch with our experienced team.

Get In Touch

Product Sheet

Overview of Conservation Egress Access Rooflights

Product Sheet

Technical performance of the Conservation Egress Access Rooflights

Cold Roof PDF Drawings

Cold Roof Clay with Flashing Kit Installation

Warm Roof PDF Drawings

Warm Roof with Flashing Kit Installation

Cold Roof DWG Drawings

Cold Roof Clay with Flashing Kit Installation

Warm Roof DWG Drawings

Warm Roof with Flashing Kit Installation

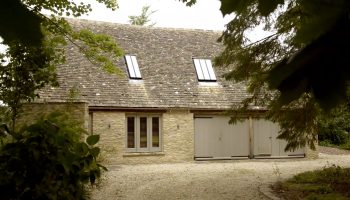

Specifying This Rooflight

As partners of NBS, our rooflights are listed on NBS Chorus
and NBS Source, allowing easy specification.

Visit the NBS portal or download the editable L10
specification below

Download Specification
NBS Portal

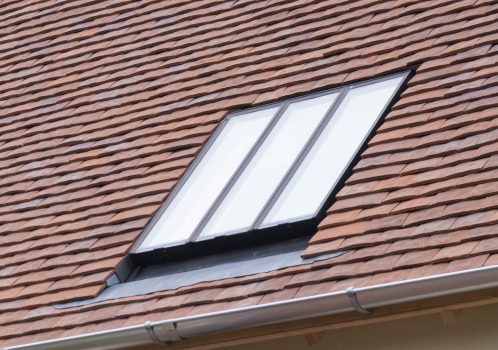

Flashing Kits


To truly protect our nation’s heritage buildings, the details around the installation are just as important as the rooflight itself. This may mean, it may be more appropriate to use lead soakers around the jambs of the rooflight for absolutely authenticity.

In situations where this level of detail is not essential, our flashing kit options will provide you with everything you need for a successful installation. Where appropriate, code 4 lead is supplied for the cill flashing and soakers.
The head flashing is a lead-free waterproof flashing material. Each of our three available options have been tailored through our years of experience in achieving the optimum installation process no matter the site circumstances.
