The Original Conservation Rooflight

Name: Conservation Rooflight
Brand: The Rooflight Co.
Price: Variable - dependent on customisation GBP
Availability: InStock

The Conservation Rooflight is the original low-profile skylight, combining the highest modern performance standards with an authentic traditional appearance.

Inspired by the Victorian cast iron rooflights, this classic design incorporates all the signature features down to the finest of details, redesigned to comply with all relevant building regulations of today. With full conformity marking to European standards, our rooflights are also found in properties within the Republic of Ireland and further into Europe.

Favoured by English Heritage, the National Trust and Conservation Officers, The Conservation Rooflight is known to grace some of the country’s most prestigious buildings and private residences.

Authentic Design

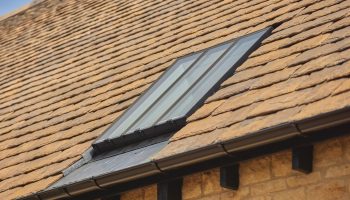

Flush Finish

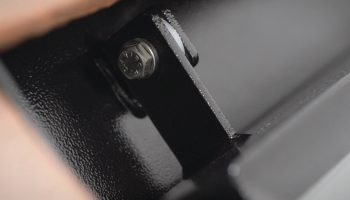

Exposed Hinges

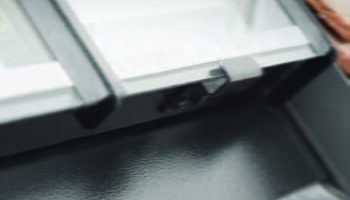

Single Glazed Appearance

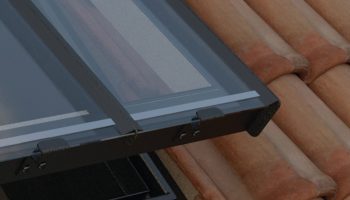

Angled Wedge

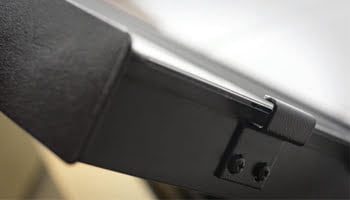

Glazing Clips

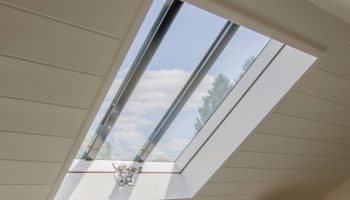

Seamless Internal Finish

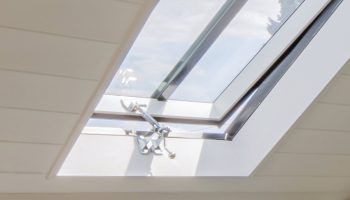

Opening Options

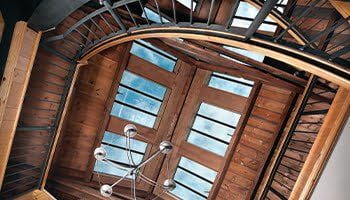

Linking Options

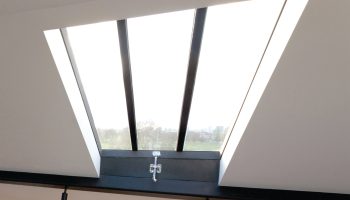

Shapes & Sizes to Suit You

Modern Performance

Performance Characteristics	Test Method	Classification
Thermal transmittance of window (Uw)	EN ISO 10077-2	1.4 W/m²K
Thermal transmittance of glazing (Ug)	EN 673	1.0W/m²K
Solar energy transmittance	EN 410	0.51 (51%)
Light transmittance	EN 410	0.71 (71%)

Classic Sizes

Suitable for pitched roofs between 17.5° to 65°
Our classic sizes are a collection of frequently requested solutions.
Sizes are displayed as the clear viewable dimensions. Please note, the structural opening dimensions can be found by hovering over the icons. For structural openings in a flush slate roof pitch below 29°, please get in touch with our team.
Offering you complete flexibility on opening options, from fixed in the closed position or motorised to an authentic manual handle.
For a complete tailormade solution, visit our Design Solutions page for hands on support on your project.
The Conservation Rooflight range is conformity marked in accordance with EN14351-1.

Spindle Options

Configuration Options

The Conservation Rooflight can be easily tailored to your specific requirements.

These include:

Colours
Side by Side Linking Systems
Made to Measure Sizes
Alternative Glass Specifications

Technical Documentation
Installation Manuals
Installation Guides

Product Sheet

Overview of The Conservation Rooflight

Product Data Sheet

Technical performance specification of The Conservation Rooflight

BIM Object

Zip File of the The Conservation Rooflight Model

Cold Roof PDF Drawings

Cross section installation drawings in a variety of roof finishes.

Warm Roof PDF Drawings

Cross section installation drawings in a variety of roof finishes.

Online Framing Repository

Access the framing plan for our classic Conservation Rooflight sizes.

Cold Roof DWG Drawings

Cross section installation drawings in a variety of roof finishes in DWG format.

Warm Roof DWG Drawings

Cross section installation drawings in a variety of roof finishes in DWG format.

DWG Online Viewer

Access all DWG files through our online viewer

Rafter Installation Calculator

The Conservation Rooflight Installation Manual

Ironmongery Installation Manual

Operation and Maintenance Manual

Roller Blinds Installation Manual

Pleated Blinds Installation Manual

Stage 1

Preparing The Roof

Stage 2

Rooflight Installation

Stage 3

Internal Finish

Between the Rafters

Plan with Precision: Use our complimentary calculator tool to ensure a flawless fit when installing The Conservation Rooflight flush to the roofline.

Expertly designed for accuracy and ease, it generates tailored framing plans for roof build-ups under 98mm.

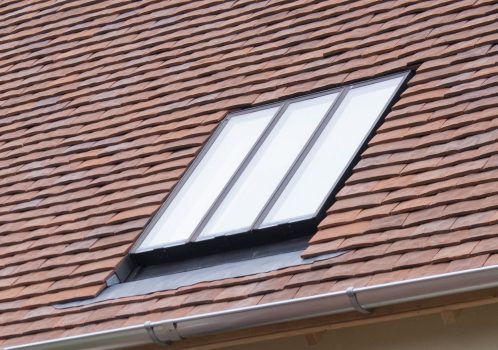

Flashing Kits

To truly protect our nation’s heritage buildings, the details around the installation are just as important as the rooflight itself. This may mean, it may be more appropriate to use lead soakers around the jambs of the rooflight for absolutely authenticity.

In situations where this level of detail is not essential, our flashing kit options will provide you with everything you need for a successful installation. Where appropriate, code 4 lead is supplied for the cill flashing and soakers.
The head flashing is a lead-free waterproof flashing material. Each of our three available options have been tailored through our years of experience in achieving the optimum installation process no matter the site circumstances.

Blinds

Blinds offer an attractive and practical solution to light control. We provide a variety of shading styles with easy manual operation or motorised systems for home automation.

Partner for Solar Shading Solutions

We are thrilled to partner with Associated Blinds, a company that truly prioritises customer care and satisfaction in line with our own premium standards. Associated Blinds create tailored solar shading solutions to match your vision, for residential and commercial properties. Providing a truly customised experience, Associated Blinds offer shading for your rooflights, windows and doors to fully align with your style preferences.

All blinds are custom-made to order, specific to your requirements. From placing the order to delivery and installation, Associated Blinds seamlessly take care of the entire shading process for you.

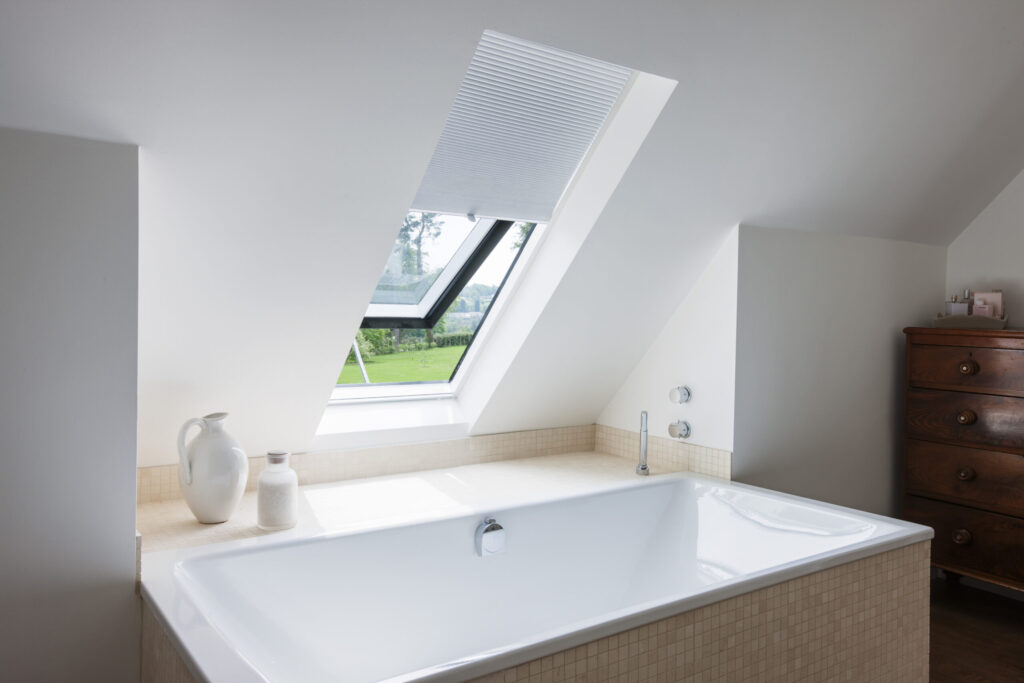

Pleated Blinds

Pleated blinds, the most popular and versatile style, can either be manually operated or motorised with home automation options. Where an array of rooflights are installed in the same space, multiple blinds can be connected and controlled remotely for convenience, using concealed motors. A pole extension is also available, for roof windows higher up and just out of reach.

When it comes to fabric choices, an extensive range of warm and cool tones have been carefully selected to complement the interiors of any home. All colour choices are available in light-filtering and black-out fabric.

The slim pleats provide a uniquely elegant finish, achieving a clean and smooth aesthetic. The shading offers a truly customised fit for a smart and seamless result.

Blinds for Residential & Commercial Projects

For larger commercial projects, mains-powered, battery or solar-powered motors are concealed for a smart and seamless finish. Chain, gear crank and spring-loaded operation options provide schools, offices, care homes and hotels with convenient solutions.

The collection of fabrics and colours, from light-filtering to black-out, offers you full control over the amount of light and heat entering the space. Using a zip channel and fabric tension system (FTS), the fabric is guided to retract smoothly and evenly.

For residential projects, pleated blinds offer a truly versatile solution for your rooflights, windows and doors. With matching fabrics for all glazing and a vast range of light-filtering tones to choose from, your shading solution can be crafted to complement your interior design.

Pleated blinds offer ease of operation, available in both manual and automated configurations. The frames can be powder coated in any RAL colour, ensuring a cohesive appearance with your window or door frames. Additionally, you have the option to incorporate soft furnishings such as Roman blinds into your shading ensemble.
